OLED Yellow and Blue Screen

Product Overview

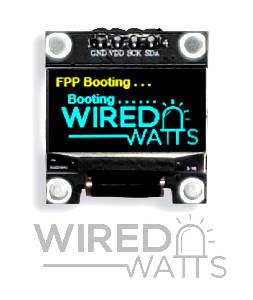

This is a 4 pin OLED screen with a yellow top banner bar and a blue main display. This can be used on any of the Kulp products to display information from FPP. This item cannot be used as a replacement for the screens on any version 3 or earlier Falcon products.

Product Specifications

• Screen Type: OLED
• Interface Type: I2C
• Pixel Resolution: 128 x 64
• Dimensions: 25mm x 27mm x 11.3mm or 1"x1"x0.5" (roughly)
• Main Screen Color: Blue
• Top Banner: Yellow
• Pin Count: 4
• Pin Layout: Ground, VDD, SCK, SDA
