Product Overview

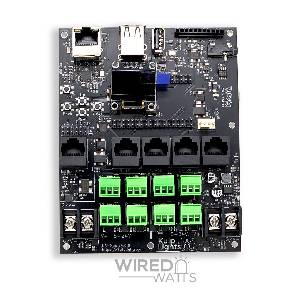

The K8-Pro is a cape for the PocketBeagle 2 that is designed to drive ws281x LED pixels. It has 8 local ports that can each drive 800 pixels (with power injection) at 40FPS. It also has 4 RJ45 differential ports that can output an additional 16 - 96 strings via differential receivers. Finally, it has one RS485 output for DMX, PixelNet, Renard, LOR.
The K8-Pro has a Real Time Clock (RTC) to maintain time, a temperature sensor, input voltage sensors, an OLED display with navigation push buttons, three powered USB ports, onboard sound, socket for FM transmitter, and a Gigabit Ethernet port (wired via USB2 so roughly 300Mb/s speed).
Each K8-Pro requires a Pocketbeagle to run
Product Specifications
- 8 x pixel connectors in banks for four.
- Each bank of four can use any voltage from 5v - 24v
- Each string is protected by an eFuse that provides current monitoring, eFuse protection, and instant alerts
- Power to each bank is enabled / disabled as needed
- 4 × RJ45 connections for 16 - 96 more strings via differential receivers
- 1 × RJ45 connection for DMX/LOR
- 1 × Header to attach FM transmitter
- 3 × USB-A connector for WiFi adapters or other USB devices
- 1 × Gigabit Ethernet Connector
- 1 × 5v 4-Pin PWM Cooling Fan Connector
- On-board pcm5102 DAC and headphone jack for sound
- Expansion header pins providing 8 GPIO outputs and access to I2C bus, 3.3v power, and ground for buttons, proximity sensors, and etc to invoke various effects and functionality.
- Temperature sensor.
- Real Time Clock
Comparison Chart
| Feature |
K8-Pro |
K8-Max |
| Shunt Style |
By Bank |
By Port |
| Current Monitoring |
No |
Yes |
| Fuse Style |
Blade |
eFuse |
