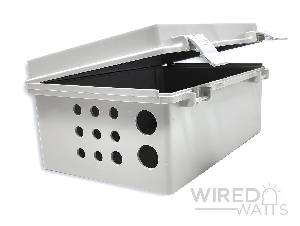

NBF-32016 by Bud Industries Weatherproof Enclosure Precision Cut 8 Pigtail Holes 2 RJ45 Holes

Product Overview

The NBF-32016 is a great option to mount controllers and other peripherals in a water resistant box. We carry a mounting plate that will work with Kulp, Flacon, and EL style controllers and receivers. This precision, pre-cut version was designed to house many different iterations of either Kulp, Falcon, and EL boards. The box comes pre-cut with 8 PG7 sized holes for pigtails of your choice, one PG9 sized hole for power, and 2 holes for RJ45 passthrough glands to allow for network connectivity and receiver boards.

Want some help building a full controller? Check out our Build-A-Kit page for controllers. It will assist you in finding all the items you need for a full controller buildout https://www.wiredwatts.com/build-a-controller-kit

Product Specifications

• External Dimensions: 11.99" × 7.99" × 5.22"
• Internal Dimensions: 11.01" × 7.02" × 4.62"
• Weight: 2 lbs
• Color: Light Gray
• Indoor / Outdoor: Indoor (Not UV Stabilized)
• Flammability Rating: UL94-HB
• Type of Plastic: ABS
• Service Temperature Min: -40°C
• Service Temperature Max: 60°C
• IP Rating: 66
