2026 Version NBF-32022 Mounting Plate Kit for Falcon, Kulp, or Genius Controllers

Product Overview

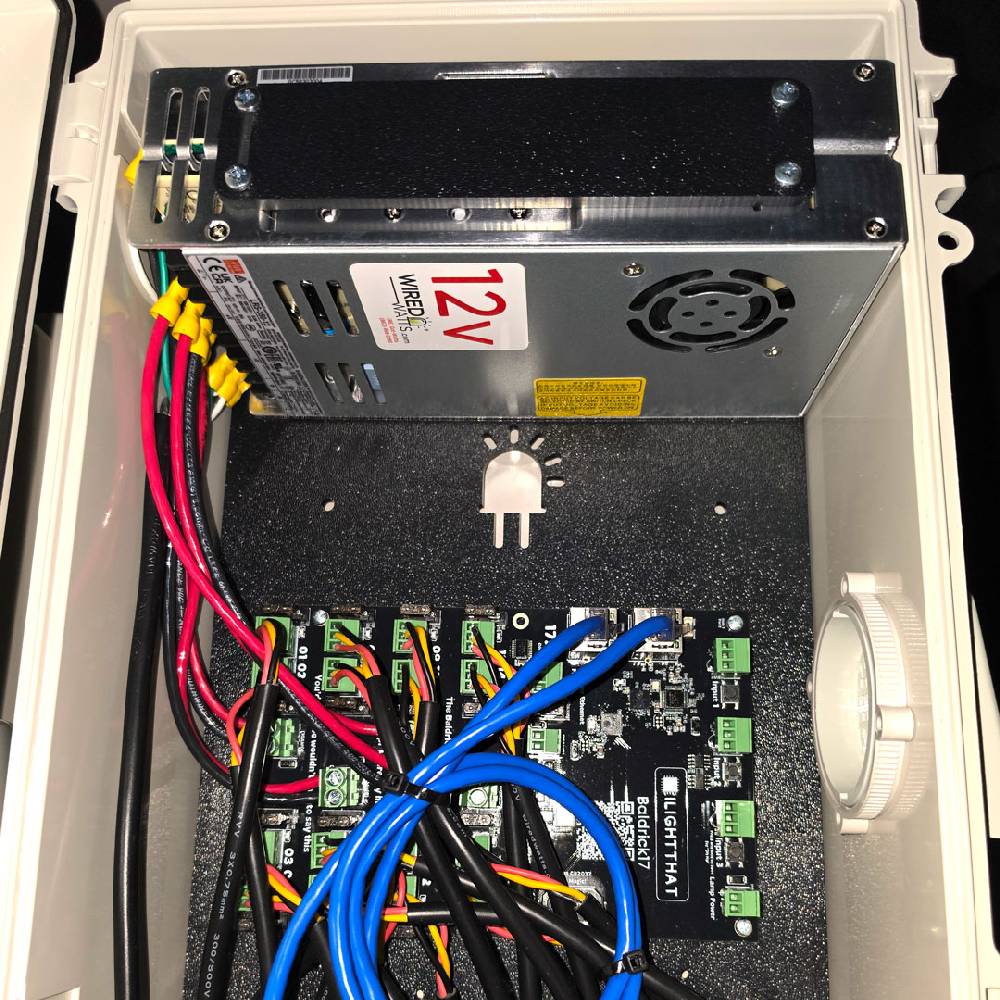

This mounting plate kit will allow you to put either your Falcon, Kulp, Genius, or Baldrick controller into a Bud NBF-32022 or Bud NBF-32024 box with up to 24 pigtails of your choice, up to 3 power supplies, and up to 14 network glands to allow for ultimate connectivity to your display. This plate is a little different from some of the other plates in that it mounts the power supplies on the side as opposed to stacked. Please see the additional picture(s) for reference.The mounting plate kit comes with all mounting hardware, a bottom mounting plate, and one power supply mounting plate. To create a full build, try our controller builder page or look over some of the parts below:

• 1 × Bud NBF-32022 or Bud NBF-32024 Enclosure (use the dropdowns on the page to choose other options).
• 1 to 3 × Slim 350w Meanwell sized power supplies.
• 1 × AC Power Cord (if you use 3 power supplies, you will want the 16 AWG power cord)
• 1 × PG9 Gland Pack
• 1 to 3 × PG7 Gland Pack (you will need a pack for every 8 pigtails)
• 0 to 2 × Small Vent
• 0 to 14 × Network Gland with Dongle (it's a good idea to have at least one of these for every network port on your controller. The others would be used for the DMX and receiver outputs from your controller or expansions)
• 8 feet of 10AWG Bulk Cable Red
• 8 feet of 10AWG Bulk Cable Black
• 1 to 24 × Pigtails of your choice. 18" style pigtails will be fine for this build
• 1 to 2 × Heat Shrink Labels. Get a 1 - 16 and possibly a 17 - 32 set to label each of your pigtails.
• Plate supports the following:
  • Falcon: F16v3, F16v4, F16v5, F48v1, F48v4
  • Kulp: K16-Basic, Pro, Max
  • Genius: GLR, GPX16
  • Baldrick: BR17
• If you wish to mount a Kulp K16A-B, K8-B, or K8-PB, use the Legacy 32022 plate instead.
