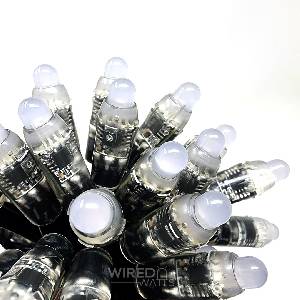

Smart 12v 50ct Bullet Node Pixels Black Wire Ray Wu Connector Regulated

Product Overview

These pixels are a little different in that they have a voltage regulator in them instead of a set of resistors. To find out more, head over to this page for a more in depth look at these special pixels

Product Specifications

• Node Voltage: 12V DC
  • Regulator
• Node Color: RGB
• Node Protocol: WS2811
• Node Spacing: 10cm / ~4"
• Lead Length: 150mm / ~6"
• Node Type: Smart Bullet
• Nodes Per. String: 50

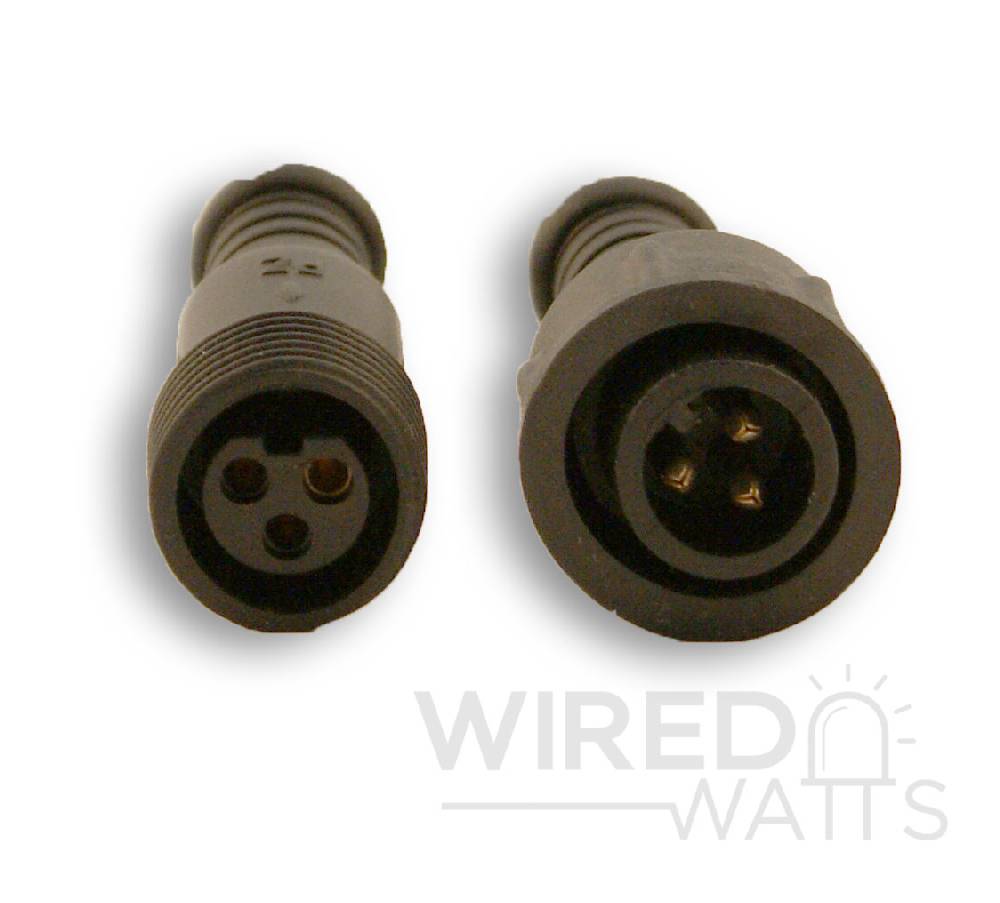

• Compatible Pigtail: 13.5mm / Ray Wu
• Power Consumption Based On 100% White:
  • Max Node Current Draw: 60mA
  • Max Node Wattage: 0.72W
  • Max String Current Draw: 3A
  • Max String Wattage: 36W
  • Max Nodes Before Power Injection: 120
• DMX Channels:
  • Per Node: 3
  • Per String: 150
• Required Controller: Smart Pixel
• Viewing Angle: 150 - 180°
• Weather Protection: IP65
• Width: 12mm
• Wire Color: Black
• Wire Gauge: Stamped 18AWG, Closer to 20AWG
