RNI1500 Mounting Plate for Kulp Controllers and Computers

Product Overview

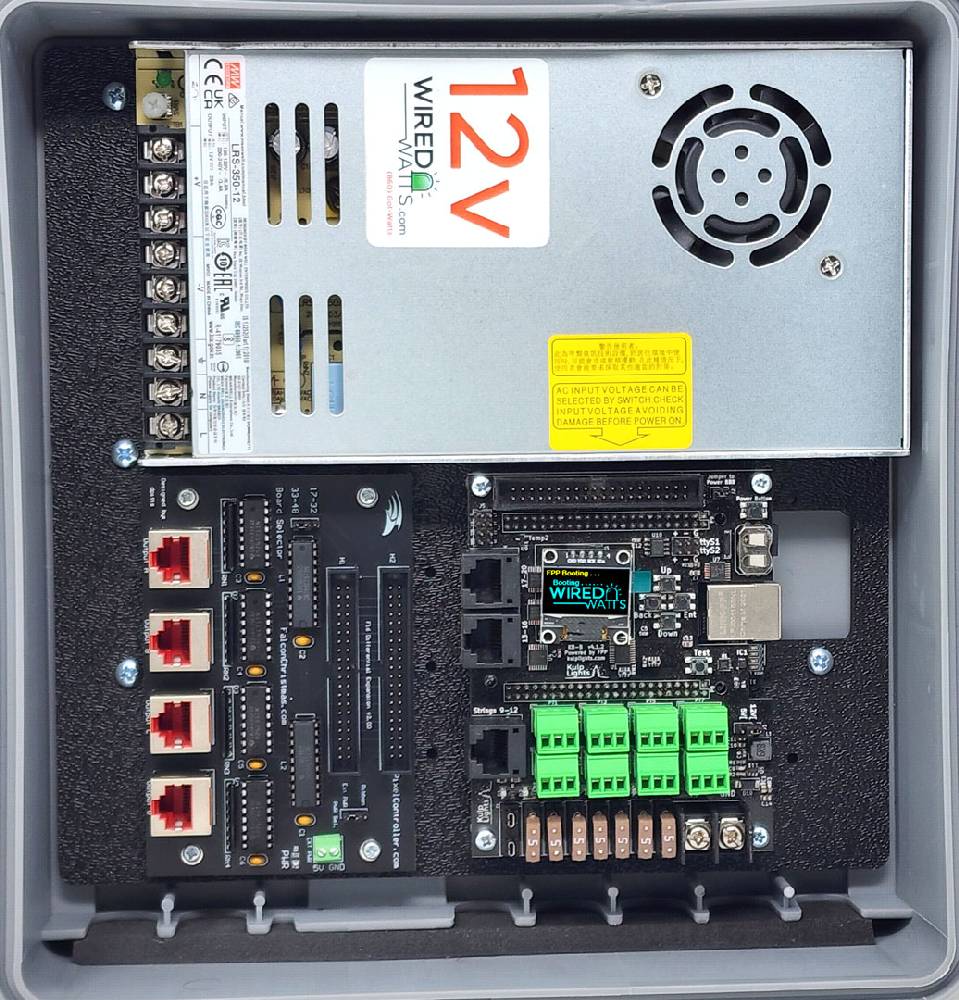

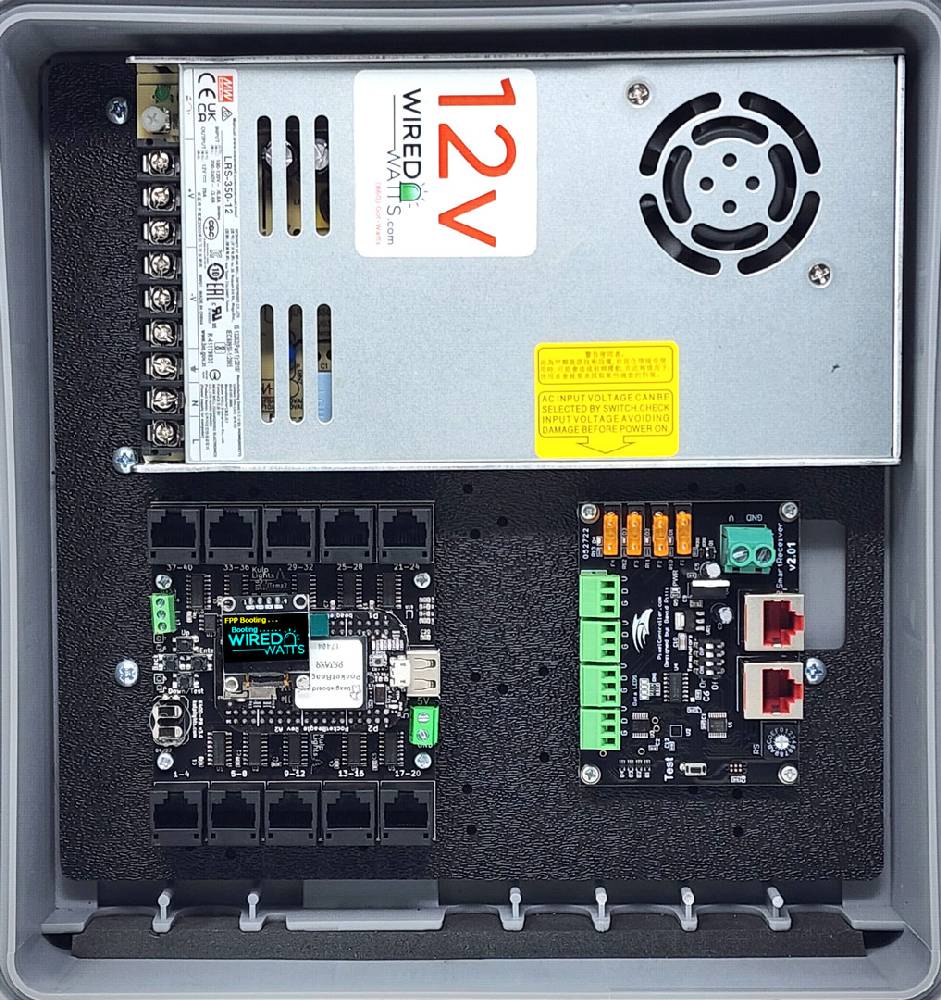

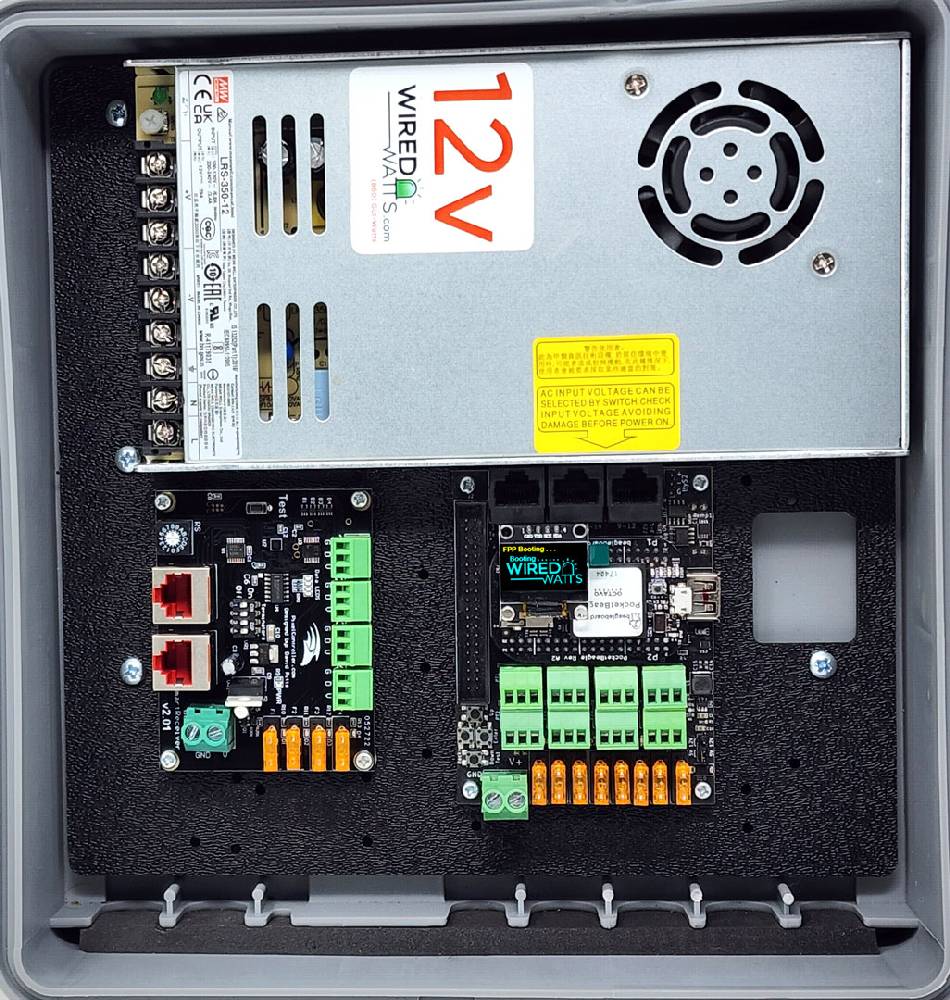

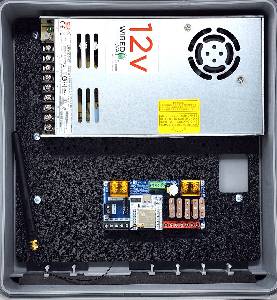

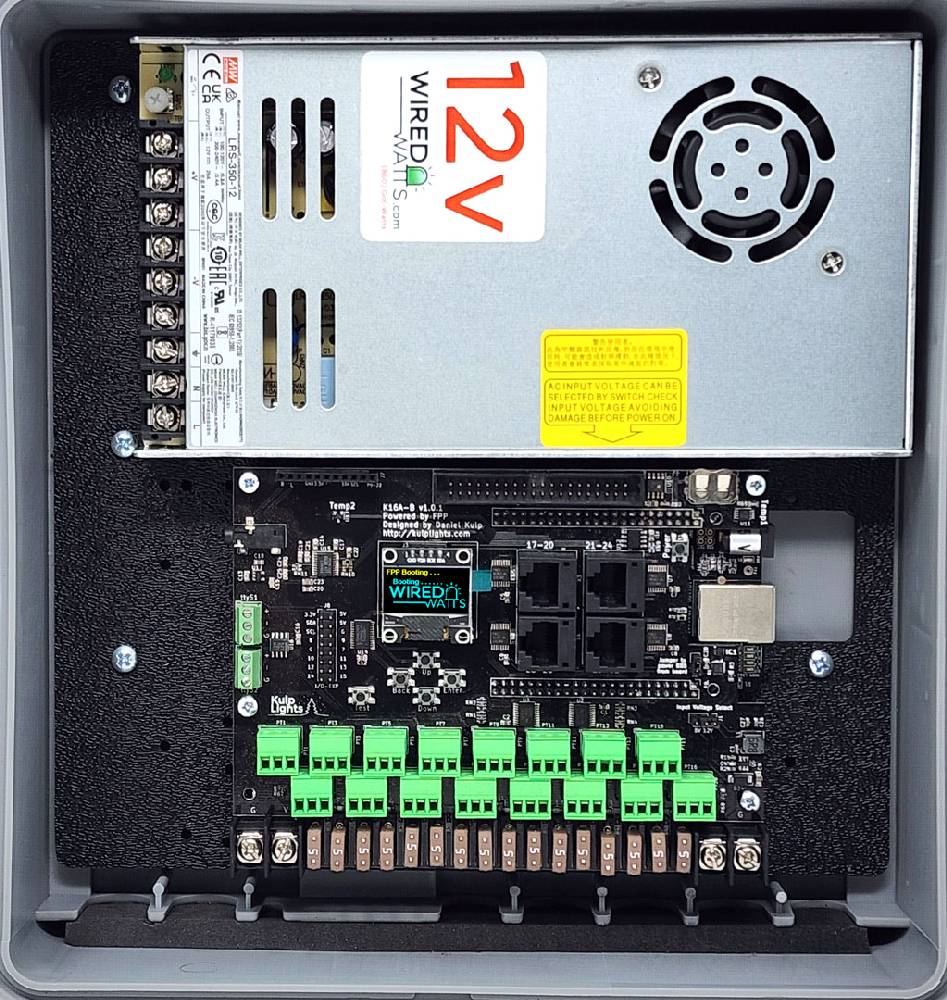

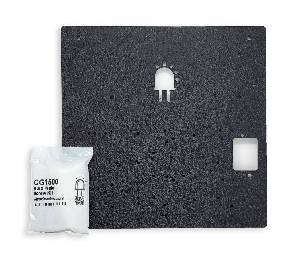

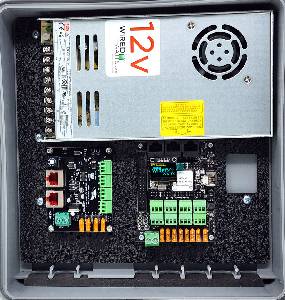

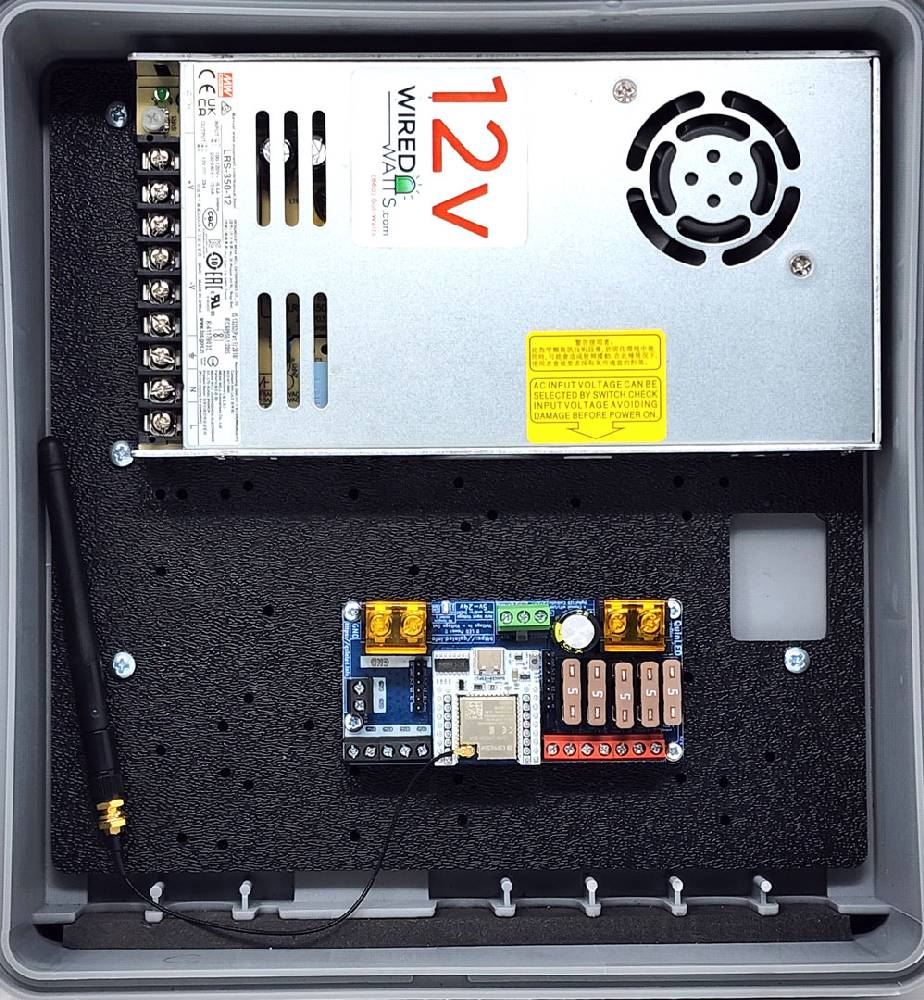

This RNI1500 Mounting Plate allows you to mount most of the Kulp Lights Controllers and also some of the smaller computer boards directly into a RNI1500 in many different configurations. The pictures depict a few of these scenarios. Some of these can be mixed and matched to provide the ultimate in flexibility. The plate is provided with enough screws to mount a single power supply, two different controller boards, and the anchor screws to keep it firmly inside the enclosure. This plate can also be used with our 1500 Double Stack power supply mount to stack two Meanwell style power supplies in the RNI1500 box. All other items pictured are not included and sold separately.

For a Full Buildout

To make this plate a full buildout for a K16A-B, K8-B, K8-PB, or K32A-B, you will use the following:

• 1 × RNI1500 Enclosure
• 1 to 2 × Slim Meanwell sized power supplies or a single Generic Power Supply
• 0 to 1 × Meanwell Double Stack Mount (used if you use more than one Meanwell)
• 1 × AC Power Cord
• Up to 5 feet of 10AWG Bulk Cable Red
• Up to 5 feet of 10AWG Bulk Cable Black
• 1 to 32 × Pigtails of your choice. 18" style pigtails will be fine for this build
• 1 to 2 × Heat Shrink Labels. Get a 1 - 16 and possibly a 17 - 32 set to label each of your pigtails. We carry 5 colors.

Want some help building a full controller? Check out our Build-A-Kit page for controllers. It will assist you in finding all the items you need for a full controller buildout https://www.wiredwatts.com/build-a-controller-kit

Product Specifications

• Width: 241.3mm / 9.5"
• Height: 241.3mm / 9.5"
• Thickness: 4.7625mm / 3/16"
• Material: ABS
• Configuration: Layout for multiple configurations, refer to the pictures.
• Includes: CG Kulp and Computer Plate Screw Kit
• Works With:
  • Kulp Lights K32A-B, K16A-B, K8-B, K8-PB, K40D-PB, K4-PB
  • Raspberry Pi, Beaglebone Black
  • Falcon Dumb and Smart Receivers, Differential Expansion Board
  • QuinLED-Dig-Quad
